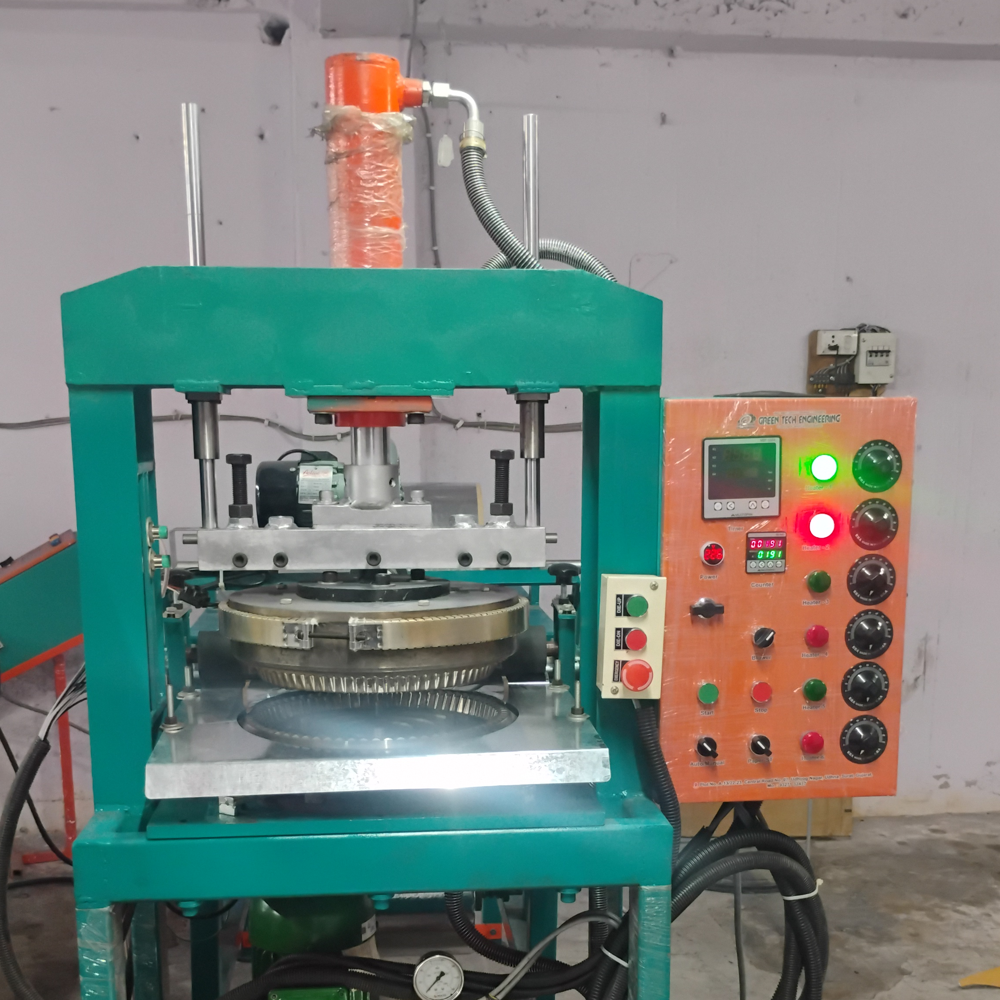

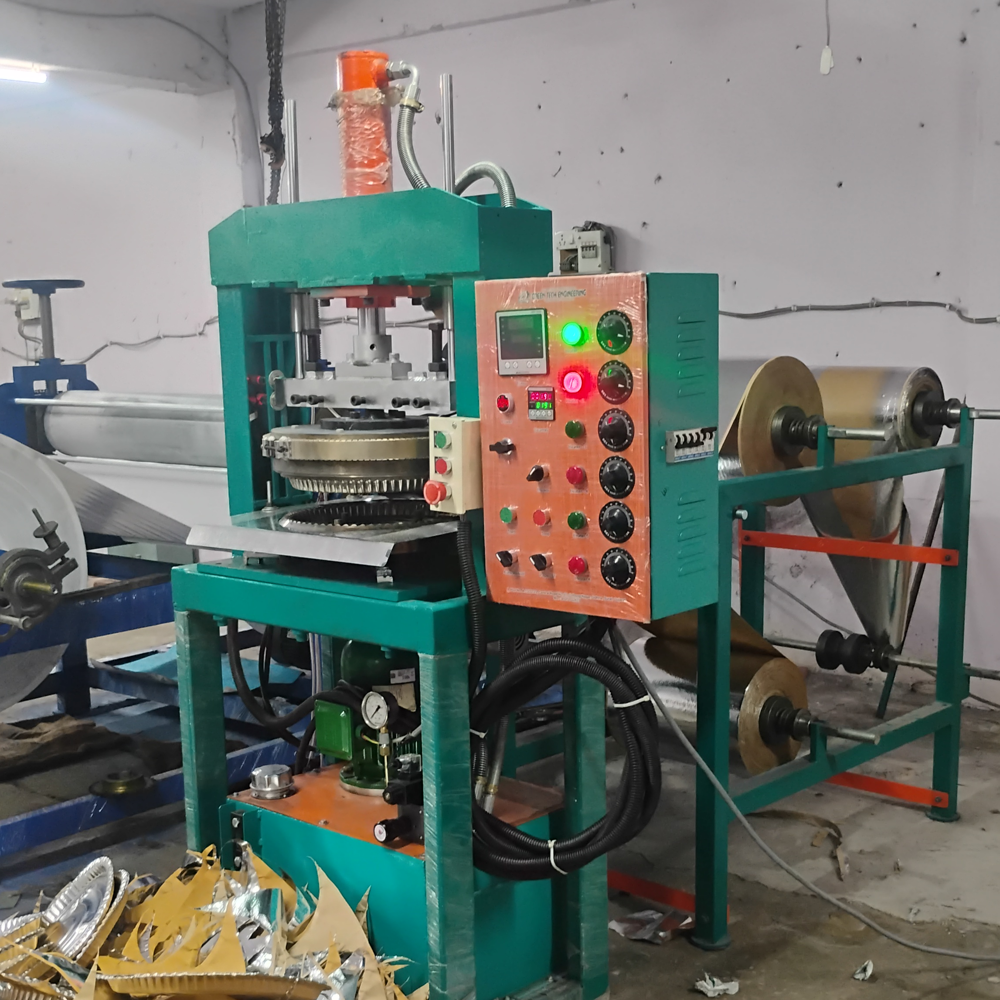

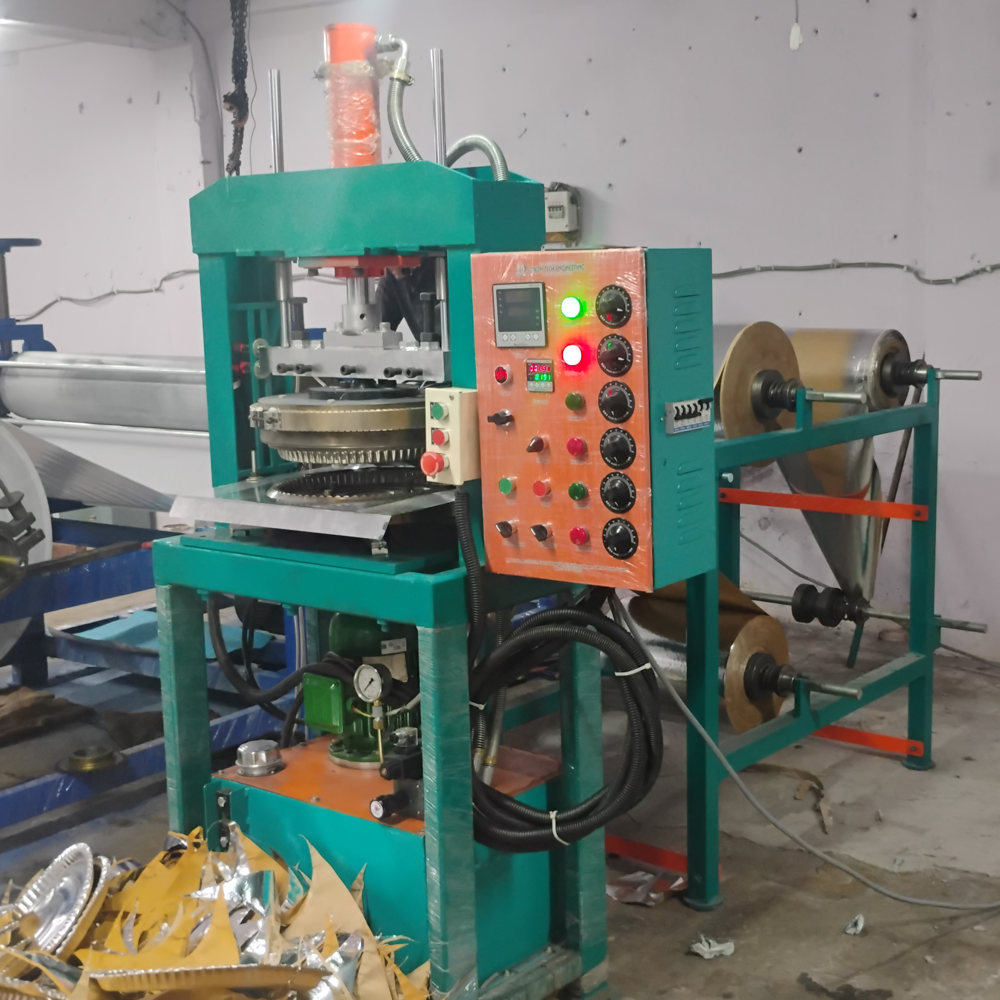

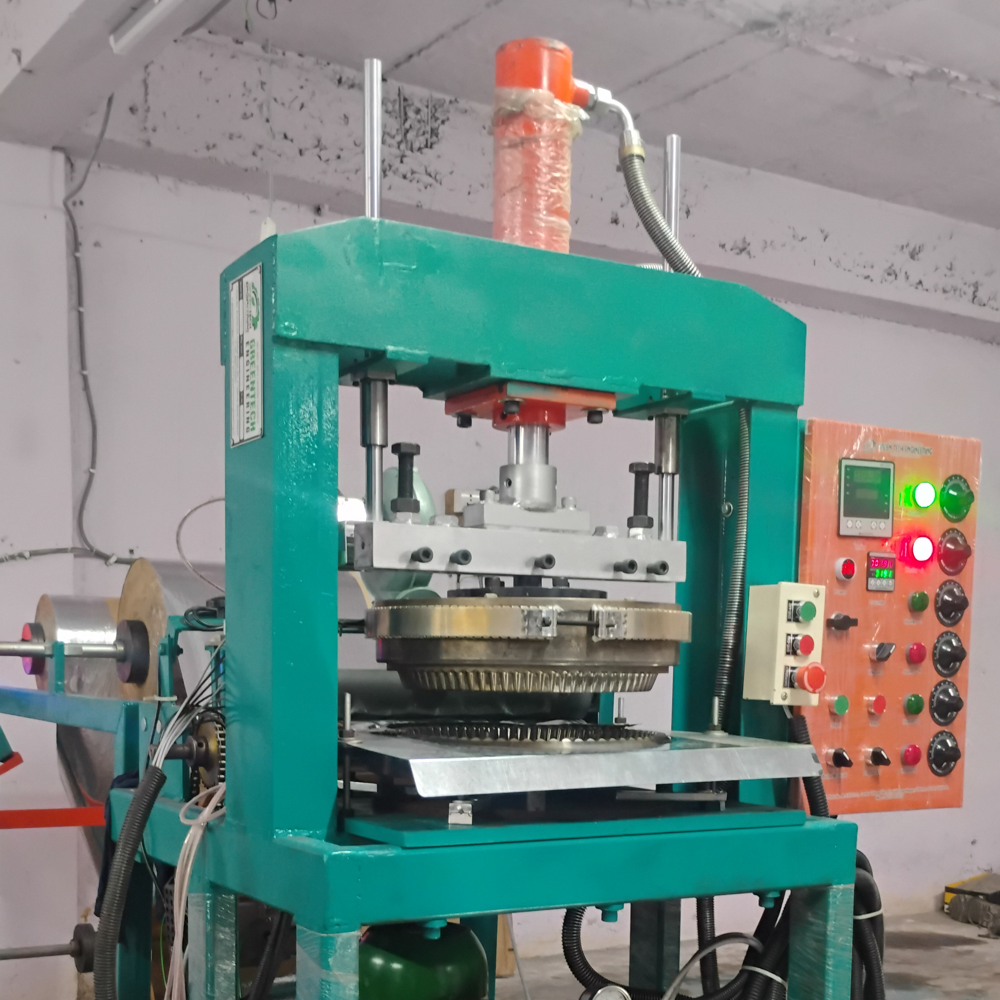

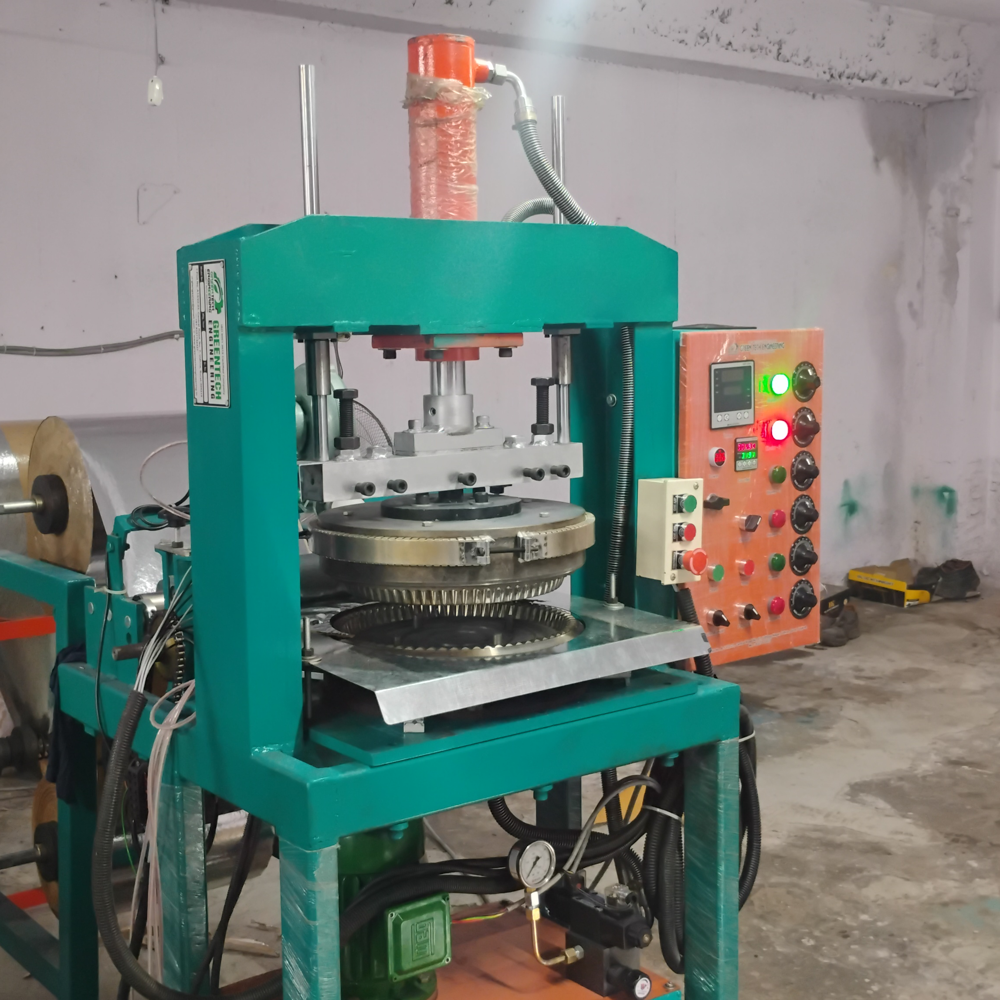

Multipurpose Hydraulic Dona and Plate Making Machine
225000.0 INR/Piece
Product Details:
- Grade Automatic
- Type Other
- Material Paper
- Capacity 2100 Pcs/hr
- Computerized No
- Control System Human Machine Interface
- Voltage 220 Volt (v)
- Click to View more
X
Multipurpose Hydraulic Dona and Plate Making Machine Price And Quantity
- 1 Piece
- 225000.0 INR/Piece
Multipurpose Hydraulic Dona and Plate Making Machine Product Specifications
- Human Machine Interface
- One year of Motor, Blower and Programmable Timer
- Automatic
- Green
- Other
- 8.6 x 3 x 5.6 Foot (ft)
- 2100 Pcs/hr
- 220 Volt (v)
- Paper
- No
- 450 Kilograms (kg)
- 220 Volt (v)
Multipurpose Hydraulic Dona and Plate Making Machine Trade Information
- Cheque, Western Union, Paypal
- 50-60 Piece Per Month
- 7 Days
- No
- Box Packaging and Wraping
- All India
Product Description
Technical Specifications
| Model No. | GT-T06 |
| Die Size | 4-18 |
| Production | 2000-3000 Pcs/Hr |
| Raw Material | 80 GSM to 450 GSM |
| Power Source | 220V, 50Hz |
| Electric Motor | 2HP |
| Power Consumption | 2-2.5 Unit/Hr |
| Oil Tank Capacity | 70 Ltrs |
| Weight | 450kg |
Free Accessories
| Heater Set of Free Dies |
| Die Connector = 4 |
| Die Clamps |
| Spanner Set |
| Rubber Pad |
Efficient Automatic Operation
Designed for high-speed, automatic manufacturing, this machine streamlines production of paper donas and plates. With an intelligent control system, it can reach outputs of up to 2100 pieces per hour, supporting businesses that demand consistent quantity and quality. Its robust build ensures long-term reliability, making it a trusted choice for manufacturers across India.
User-Friendly Interface
The incorporated Human Machine Interface facilitates simple and safe operations. Operators can easily manage settings and monitor processes, even without technical expertise. The lack of computerization further simplifies its use, allowing anyone with minimal training to run the machine efficiently.
Durable Design and Support
Built with premium materials and weighing 450 kilograms, this machine promises durability and stability during intensive production. It carries a one-year warranty on critical components such as the motor, blower, and timer, providing peace of mind and support for business owners.
FAQ's of Multipurpose Hydraulic Dona and Plate Making Machine:
Q: How does the Multipurpose Hydraulic Dona and Plate Making Machine operate?
A: This machine utilizes hydraulic pressure with an automatic system, managed via a Human Machine Interface. Operators can easily set parameters and initiate production, ensuring efficient shaping of paper donas and plates.Q: What type of material is compatible with this machine?
A: The machine is specifically designed for use with paper, enabling the production of eco-friendly donas and plates suitable for various applications.Q: When should maintenance be performed on the hydraulic machine?
A: Regular maintenance should be conducted as per the manufacturer's guidelines, focusing particularly on the motor, blower, and programmable timer, which are covered under a one-year warranty.Q: Where can the Multipurpose Hydraulic Dona and Plate Making Machine be installed?
A: Due to its dimensions (8.6 x 3 x 5.6 feet), the machine fits easily in medium to large workshop spaces, making it suitable for production units, factories, and small businesses across India.Q: What is the process for producing donas and plates with this machine?
A: Simply load the paper material into the machine, configure the control system via the Human Machine Interface, and begin the automated production. The hydraulic mechanism shapes and outputs finished donas and plates rapidly.Q: How can businesses benefit from using this machine?
A: Businesses can achieve higher output rates, consistent product quality, and reduced labor requirements, all while offering an environmentally conscious solution. The warranty ensures support for essential components, reducing downtime and maintenance costs.Tell us about your requirement
