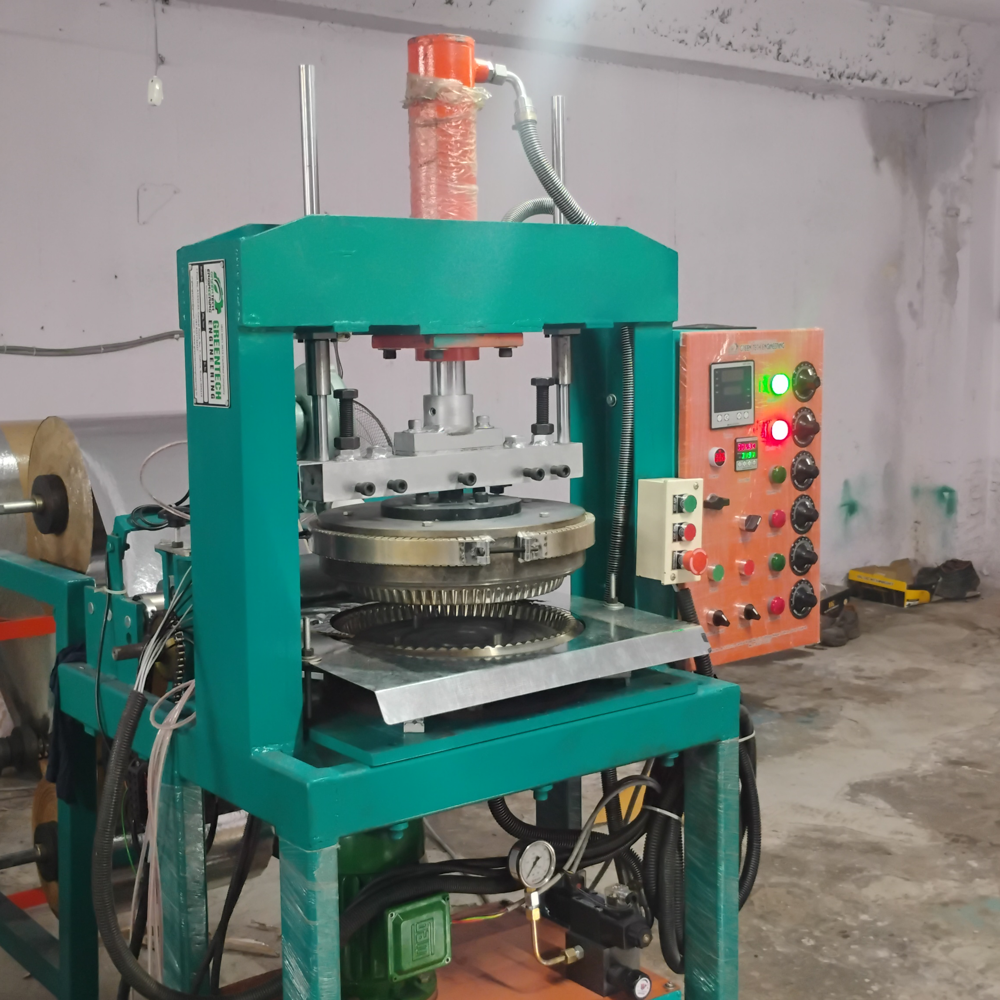

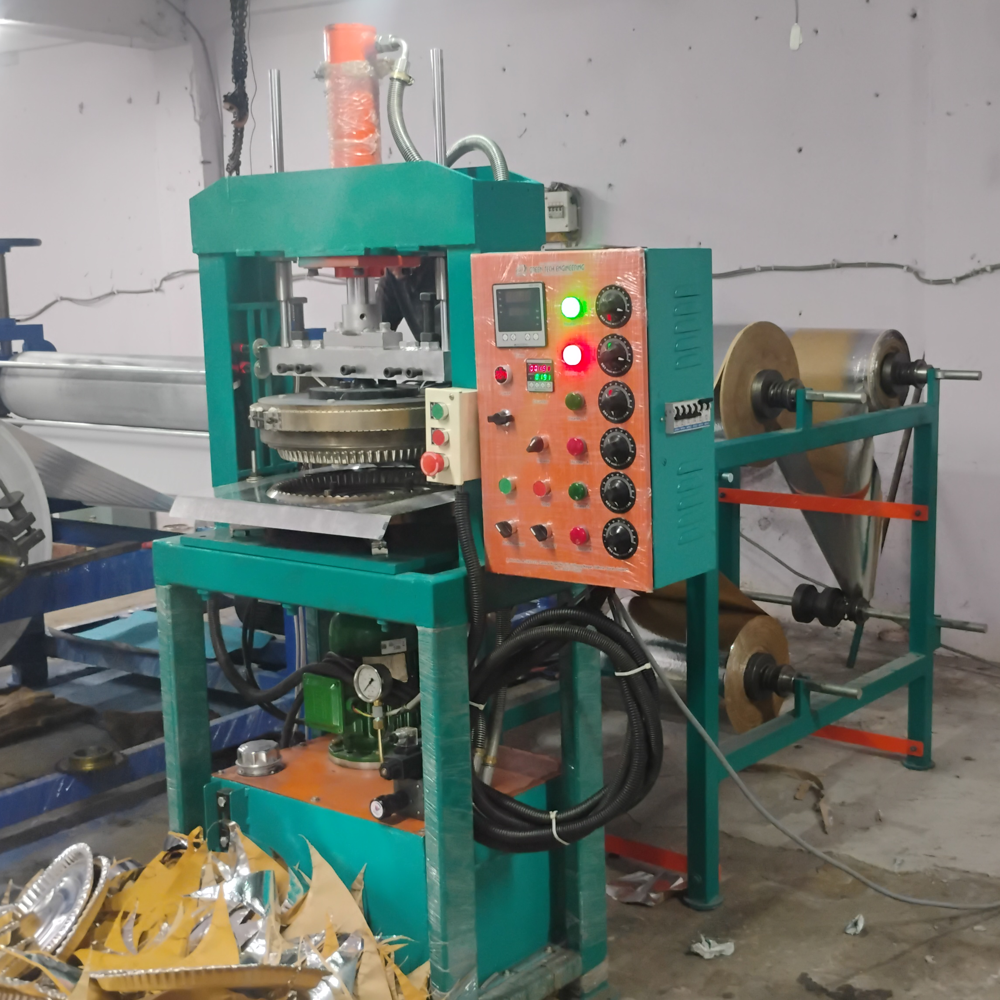

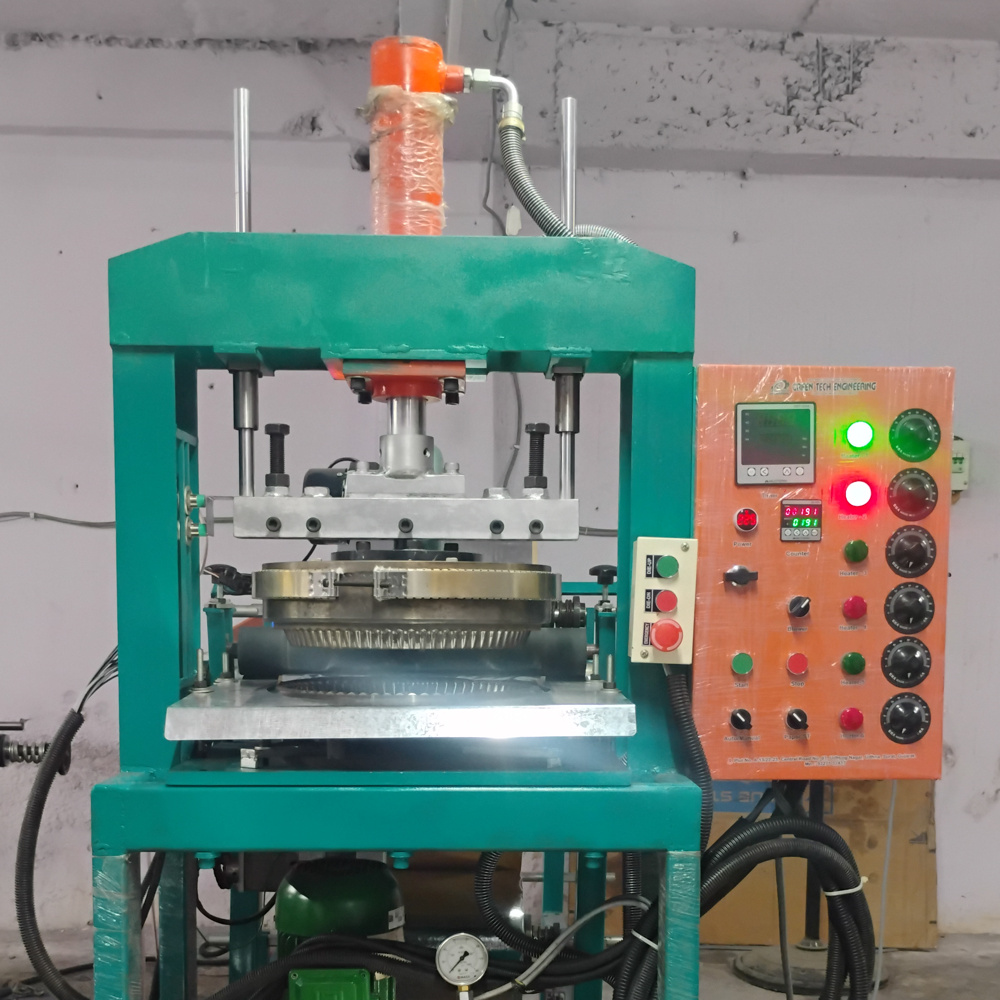

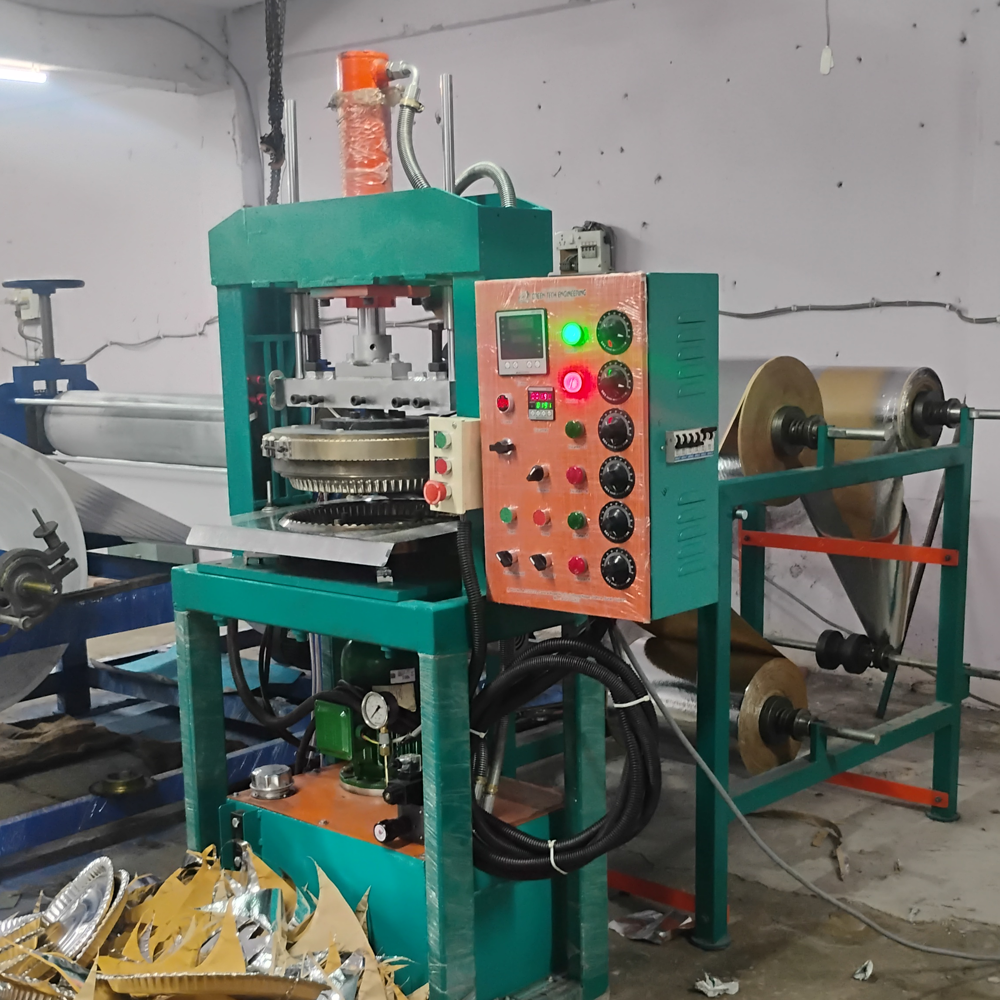

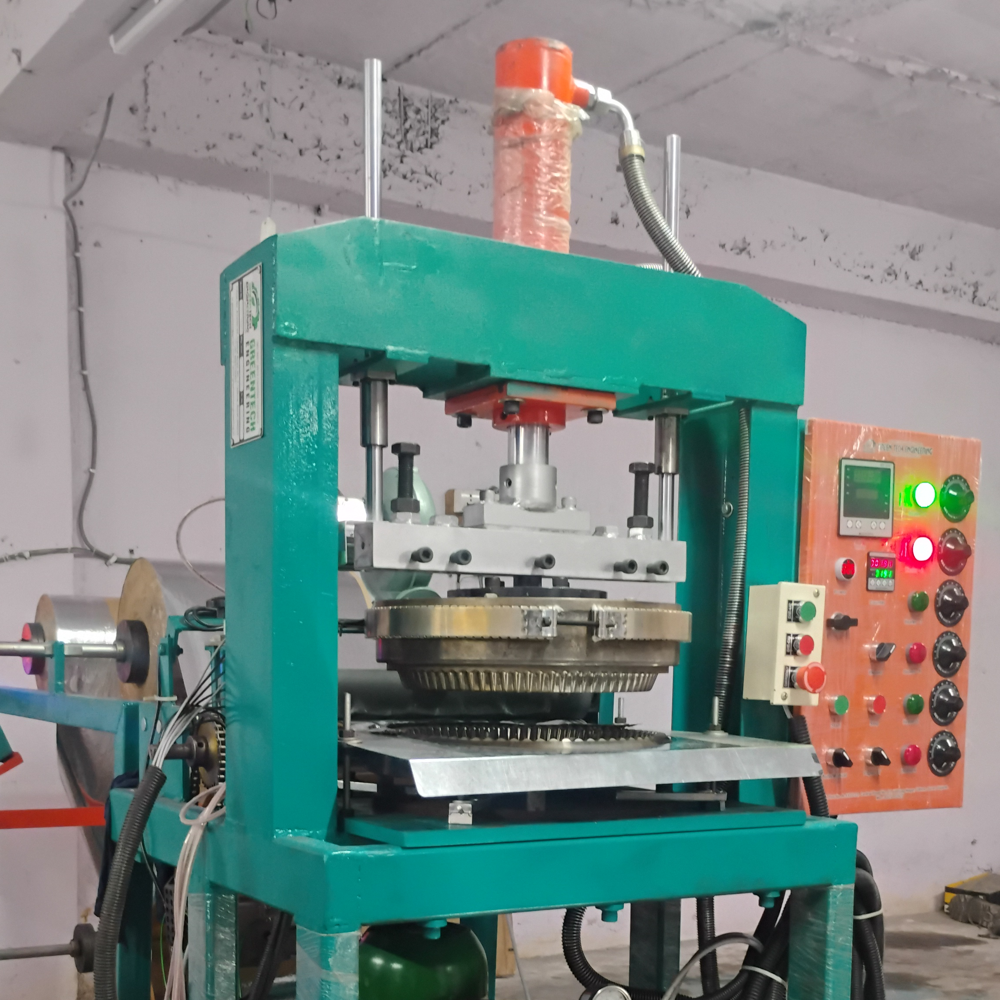

Hydraulic Paper Thali Making Machine

Name: Hydraulic Paper Thali Making Machine
Brand: GREENTECH ENGINEERING
Price: 215000.0 INR
Availability: InStock

225000.0 INR/Piece

Get a Price/Quote

Product Details:

Grade Automatic
Type Other
Material Paper
Capacity 2100 Pcs/hr
Computerized No
Control System Human Machine Interface
Voltage 220 Volt (v)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Hydraulic Paper Thali Making Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 225000.0 INR/Piece

Hydraulic Paper Thali Making Machine Product Specifications

Capacity 2100 Pcs/hr
Computerized No
Dimension (L*W*H) 8.6 x 3 x 5.6 Foot (ft)
Weight (kg) 450 Kilograms (kg)
Power 220 Volt (v)
Grade Automatic
Color Green
Type Other
Voltage 220 Volt (v)
Control System Human Machine Interface
Warranty One year of Motor, Blower and Programmable Timer
Material Paper

Hydraulic Paper Thali Making Machine Trade Information

Payment Terms Paypal, Western Union, Cheque
Supply Ability 50-60 Piece Per Month
Delivery Time 7 Days
Sample Available No
Packaging Details Box Packaging and Wraping
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

Technical Specifications

Model No.	GT-T06
Die Size	4-18
Production	2000-3000 Pcs/Hr
Raw Material	80 GSM to 450 GSM
Power Source	220V, 50Hz
Electric Motor	2HP
Power Consumption	2-2.5 Unit/Hr
Oil Tank Capacity	70 Ltrs
Weight	450kg

Free Accessories

Heater Set of Free Dies

Die Connector = 4

Die Clamps

Spanner Set

Rubber Pad

High-Performance Plate Manufacturing

Designed to streamline large-scale paper thali production, this hydraulic machine delivers an impressive output rate of 2100 pieces per hour. Automatic grade operation allows users to enhance productivity with minimal manual intervention, making it ideal for both small and large businesses.

User-Friendly Human Machine Interface

The machine features a Human Machine Interface (HMI), allowing operators to easily monitor and adjust settings. This intuitive control system simplifies maintenance and operation, ensuring consistent quality in every batch and promoting greater efficiency on the factory floor.

Durable Build with Comprehensive Warranty

Built from high-quality materials, the machine weighs 450 kg and boasts dimensions of 8.6 x 3 x 5.6 feet. It comes with a one-year warranty covering the motor, blower, and programmable timer, ensuring long-term reliability and reduced operational risks for your investment.

FAQ's of Hydraulic Paper Thali Making Machine:

Q: How does the Hydraulic Paper Thali Making Machine operate?

A: The machine functions automatically using hydraulic pressure to shape paper into thalis at a rate of 2100 pieces per hour. Users input paper material, adjust settings via the human machine interface, and the system proceeds through the forming process with little manual involvement.

Q: What materials are compatible with this thali making machine?

A: This machine is specifically designed for paper-based materials, enabling the manufacture of eco-friendly disposable thalis that are suitable for various food-service applications.

Q: When is maintenance required for optimal performance?

A: Routine maintenance is recommended every few months, depending on usage intensity. Regular inspection of the hydraulic system, motor, blower, and programmable timer prolongs the machine's lifespan and ensures uninterrupted operation.

Q: Where can this machine be installed for best results?

A: With its compact size and robust build, the machine can be installed in factories, workshops, or production facilities with sufficient power supply (220 Volt) and adequate floor space of at least 8.6 x 3 x 5.6 feet.

Q: What is the process for making paper thalis using this machine?

A: Operators load paper sheets into the machine, set the required parameters, then initiate the automated pressing stage. The hydraulic system forms, cuts, and stacks finished thalis, ready for packaging and distribution.

Q: How can the machine's warranty be utilized?

A: The one-year warranty covers repair or replacement of the motor, blower, and programmable timer. In case of malfunction within the warranty period, users can contact the manufacturer or supplier for service support.

Q: What are the primary benefits of using this machine?

A: High-speed automated operation maximizes productivity and reduces labor costs. The use of paper material supports environmental sustainability, while the robust design and warranty provide long-term operational security for businesses in India and abroad.
