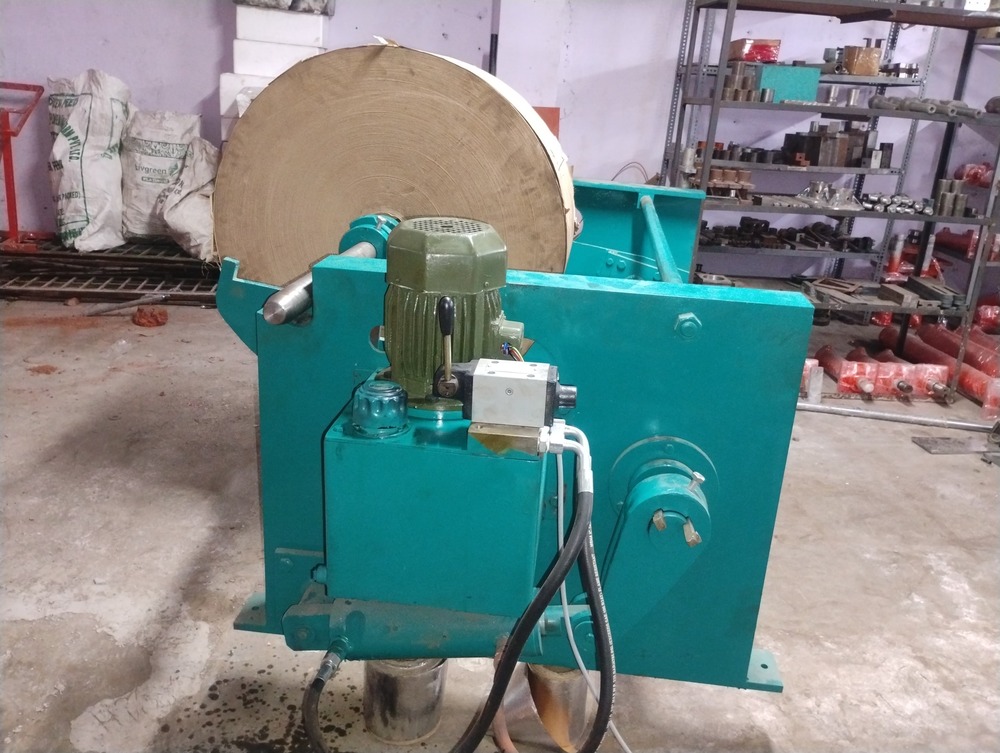

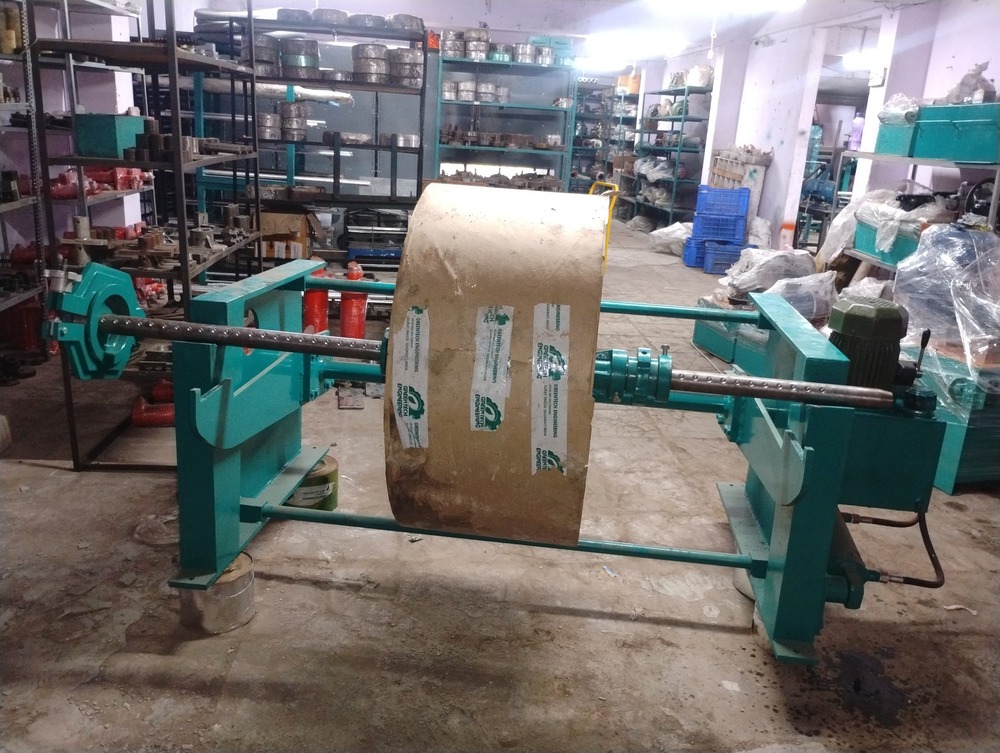

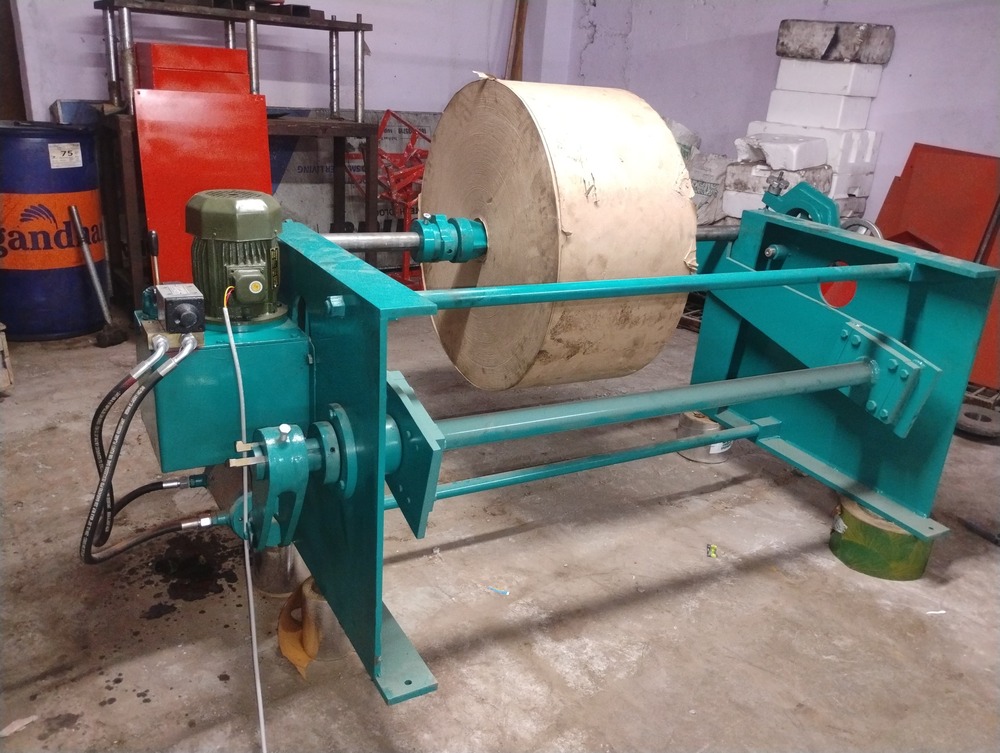

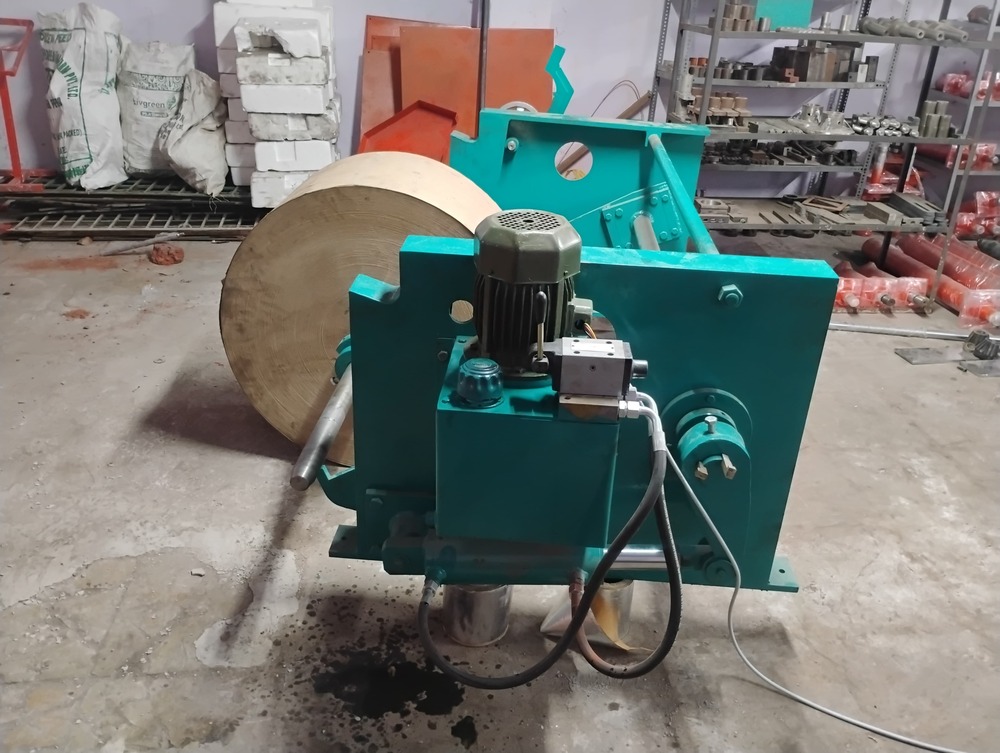

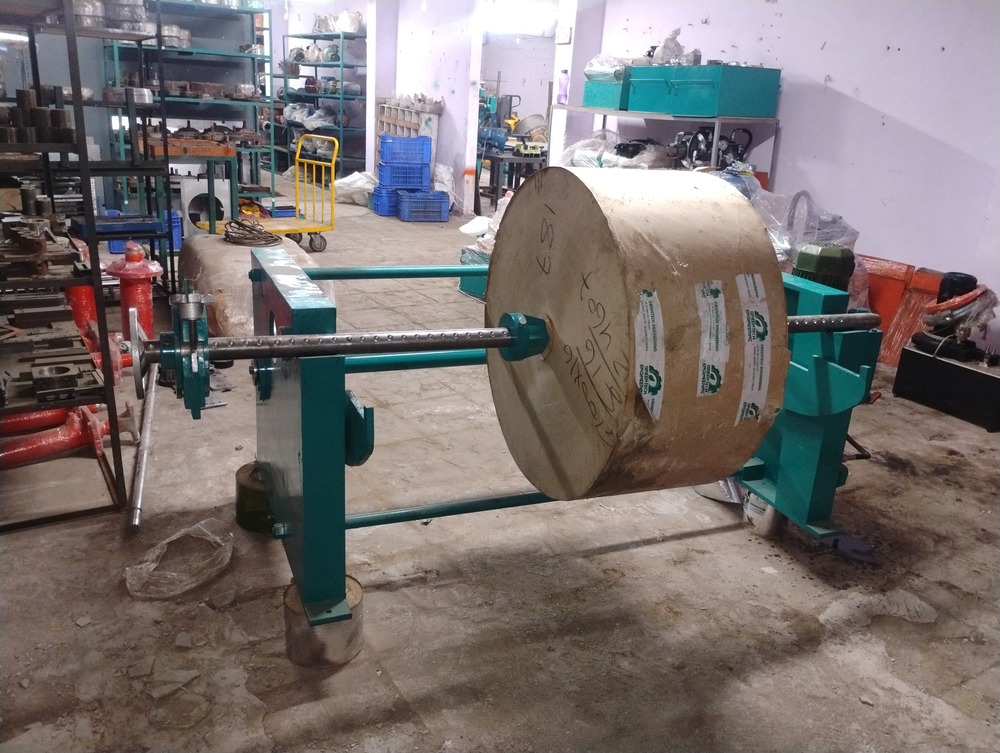

Hydraulic Self Loading Reel Stand

Product Description

The Hydraulic Lifting Shafted Reel Stand is a high-performance solution designed for safe, efficient handling of heavy cable reels. Equipped with a central shaft for stable reel support and hydraulic lifting jacks for effortless elevation, this stand is ideal for applications where precision, strength, and mobility are essential.

Key Features:

• Hydraulic Lifting System: Dual or single hydraulic jacks enable smooth, controlled lifting of loaded reels without the need for cranes or additional lifting tools.

• Shafted Reel Support: Solid steel shaft holds the reel securely in place, ensuring accurate and steady cable payout or rewind operations.

• Heavy-Duty Frame: Fabricated from industrial-grade steel with a powder-coated or galvanized finish to withstand harsh field environments.

• Adjustable Reel Widths: Supports a wide range of drum sizes with adjustable shaft brackets and customizable frame width options.

Specifications (Customizable):

• Load Capacity: Up to [insert capacity, e.g., 1,000 kg]

• Reel Diameter Range: [insert range, e.g., 40 inches]

• Shaft Diameter: [insert size, e.g., 50 mm or 2 inches]

• Finish: Powder-coated / Galvanized / Painted

Engineered for Efficiency and Safety

Designed with hydraulic self-lifting technology and robust safety mechanisms, the HRS-2500 simplifies reel handling in corrugated box production. The pressure-relief valve and mechanical safety lock ensure every lift operation is secure. No foundation is needed-its portable base enables flexible use anywhere in your facility, making installation fast and effortless.


Superior Build and User-Friendly Design

Built from high-tensile steel and finished in scratch-resistant enamel, this reel stand is made to withstand demanding industrial environments. A welded heavy-duty frame ensures reliable performance, while the powder-coated surface offers long-lasting durability. Its ergonomic lever control system enables precise and semi-automatic operation, improving productivity with minimal operator effort.


Optimized Performance and Versatility

With a lifting height of 1100 mm, lift speed of 100 mm/s, and air-cooled hydraulics, the stand handles reels up to 2000 kg easily and efficiently. Compatible with ISO VG 46 hydraulic oil, it operates between 5C and 50C and maintains a quiet work environment ( 75 dB). It fits seamlessly beside your corrugated box making machinery for smooth, nonstop working cycles.
