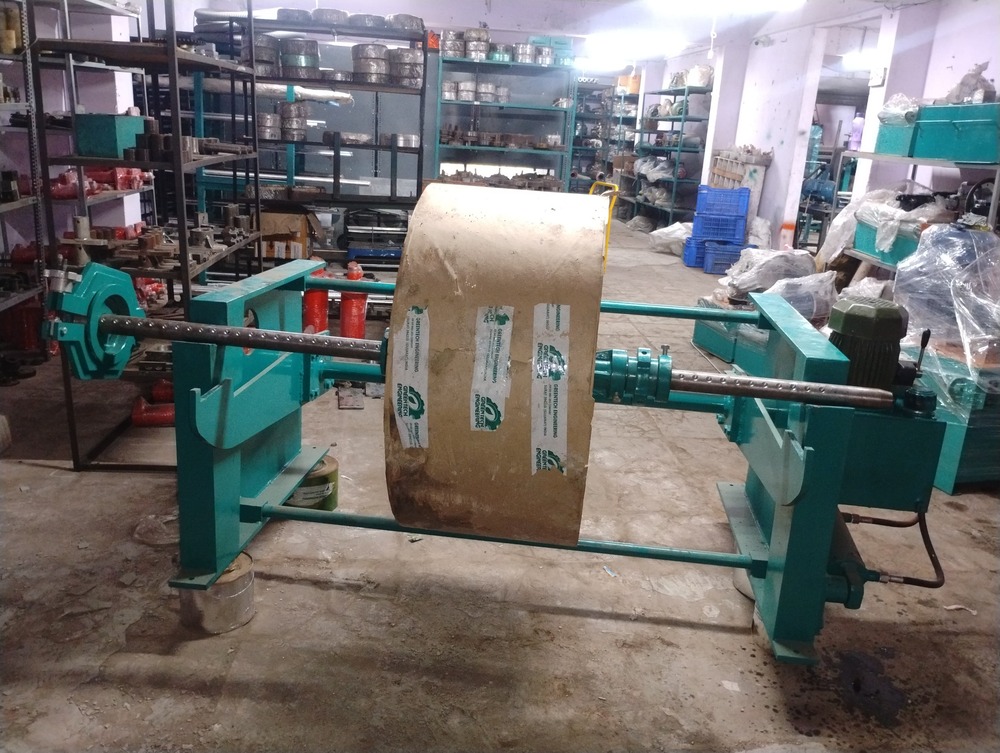

Hydraulic Lifting Shafted Reel Stand

Product Description

The Hydraulic Lifting Shafted Reel Stand is a high-performance solution designed for safe, efficient handling of heavy cable reels. Equipped with a central shaft for stable reel support and hydraulic lifting jacks for effortless elevation, this stand is ideal for applications where precision, strength, and mobility are essential.

Key Features:

• Hydraulic Lifting System: Dual or single hydraulic jacks enable smooth, controlled lifting of loaded reels without the need for cranes or additional lifting tools.

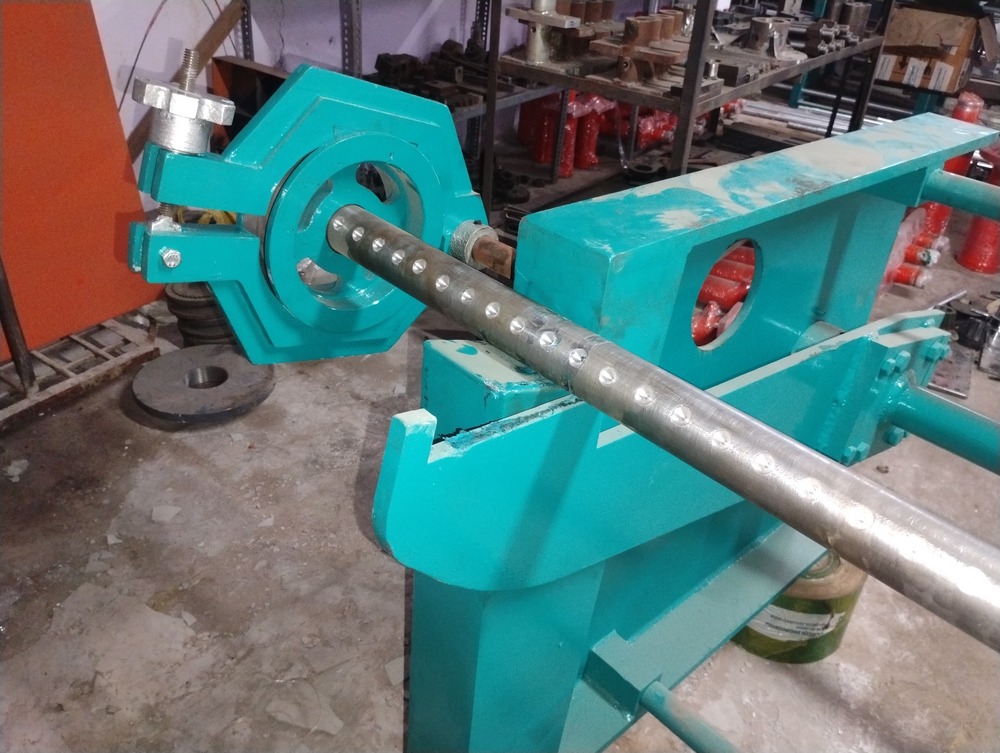

• Shafted Reel Support: Solid steel shaft holds the reel securely in place, ensuring accurate and steady cable payout or rewind operations.

• Heavy-Duty Frame: Fabricated from industrial-grade steel with a powder-coated or galvanized finish to withstand harsh field environments.

• Adjustable Reel Widths: Supports a wide range of drum sizes with adjustable shaft brackets and customizable frame width options.

Specifications (Customizable):

• Load Capacity: Up to [insert capacity, e.g., 1,000 kg]

• Reel Diameter Range: [insert range, e.g., 40 inches]

• Shaft Diameter: [insert size, e.g., 50 mm or 2 inches]

• Finish: Powder-coated / Galvanized / Painted

Advanced Hydraulic Lifting System

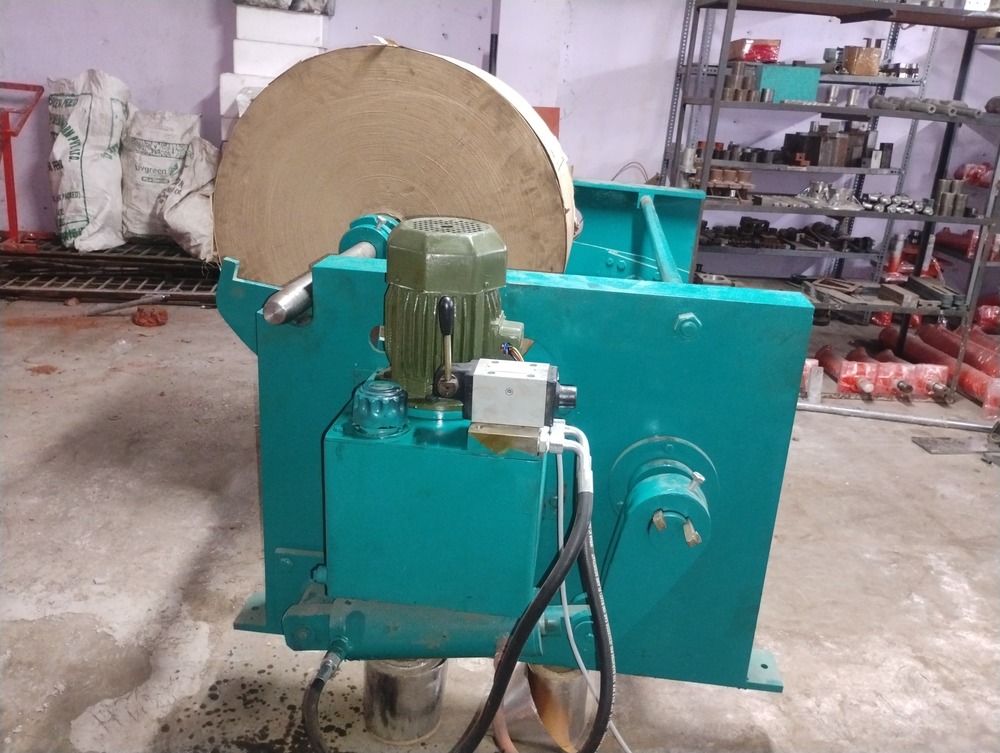

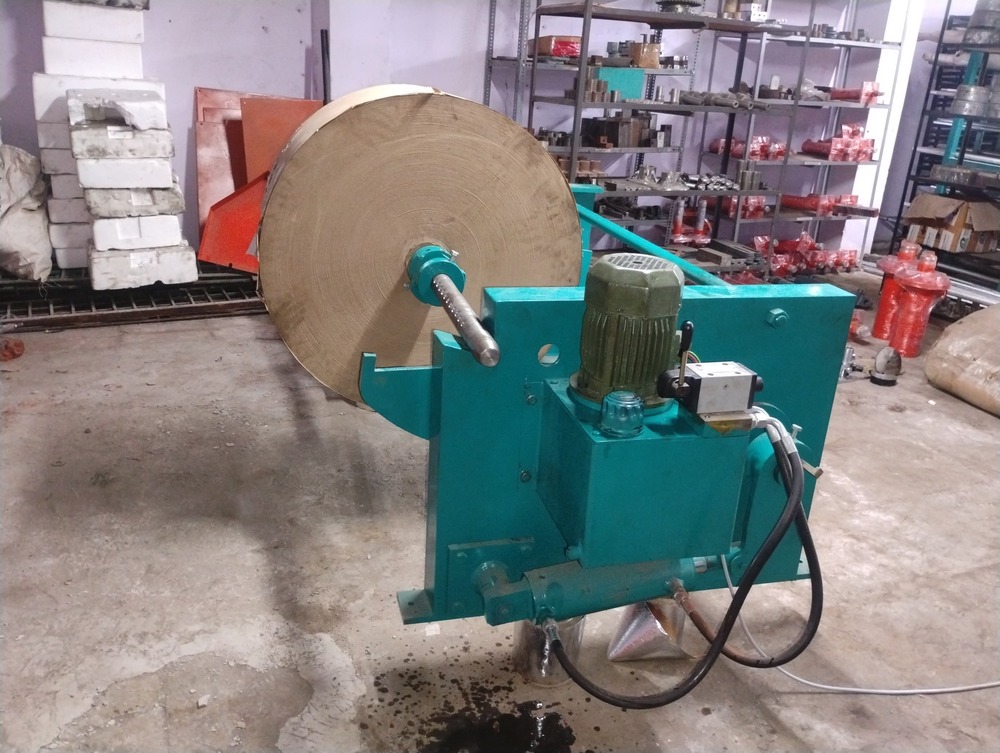

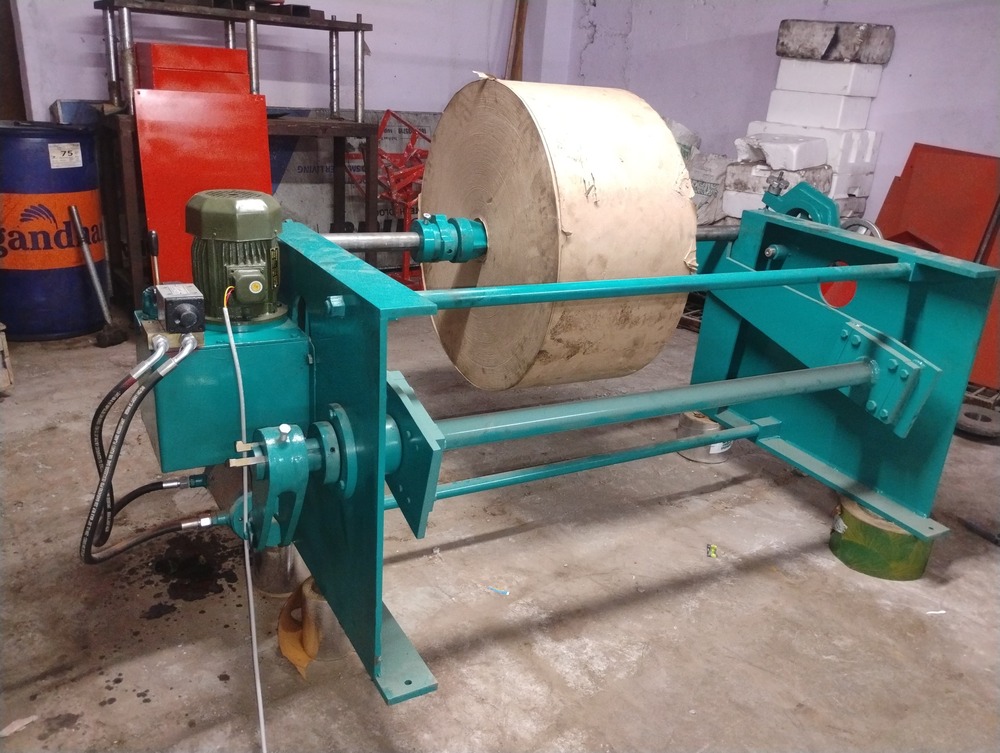

Utilizing a powerful hydraulic cylinder driven by a 2.2 kW motor, the stand achieves smooth, controlled lifting with a stroke up to 900 mm. The push button or optional PLC control facilitates semi-automatic operation, promoting efficiency and reducing manual labor.


Safety and Reliability Built-In

Equipped with locking pins and a pressure relief valve, the stand enhances operational safety during loading, unloading, and use. The heavy-duty welded frame and powder-coated surface provide long-term durability, withstanding rigorous industrial environments.


Versatile and User-Friendly Operation

Supporting reel shaft sizes from 3" to 6" with easy-to-change adaptors, this stand is designed for quick setup and changeovers. It handles up to two reels per hour, making it ideal for high-volume production lines in printing, packaging, and film converting plants.
